規格
|
General |
|
|
CPU |
Intel® AtomTM D2550 CPU, Dual-core, up to 1.86GHz, TDP 10W |
|
Chipset |
Intel® NM10 Chipset, TDP 1.5W |
|
Memory |
Up to 4 GB DDR3 1066/800 MHz, 1*SO-DIMM |
|
Storage |
1*SATA 2.0, 1*mSATA |
|
Expansion Interface |
1*Mini-PCIe (mSATA Supported) |
|
BIOS |
AMI UEFI BIOS |
|
System |
Windows XP/7, Linux |
|

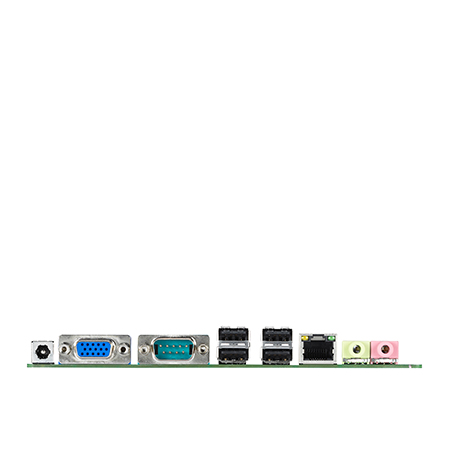

I/O Interface |
|
|
Serial Port |
4*RS232 (COM3 TTL optional) |
|
USB |
8*USB 2.0 (4*on rear I/O, 4*header) |
| Ethernet |
1*Realtek® PCI-E LAN for 100Mbps |
|
Audio |
Realtek® ALC662 5.1 channelHDA Codec, supports MIC/Line-out Ports 1*Amplifer |
|
PS/2 |
1*PS/2 (Keyboard and Mouse Supported) |
|
Parallel Port |
1*LPT |
|
GPIO |
8 programmable GPIO |
|
Feature Interface |
Null |
|
Display |
|
|
Display Interface |
1*VGA: max resolution up to 1920*1200 1*LVDS: SingleChannel 24bit, max resolution up to 1440*900 |
|
Multiple Display |
Dual |
|
Mechanical & Environment |
|
|
Dimension |
Mini-ITX, 170*170mm |
|
Power Input |
DC 12V |
| Temperature |
Operation: 0℃~60℃, Storage: -25℃~75℃ |
|
Relative Humidity |
Operation: 10%~90%, Storage: 5%~95%, non-condensing |
