您當前的位置:首頁產品中心工控主板  ? SV1a-19014P

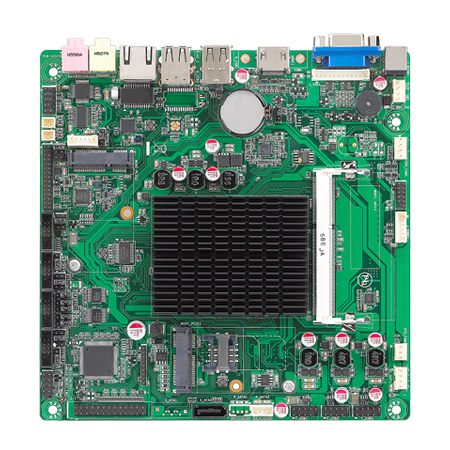

SV1a-19014P

所屬類別:工控主板

產品規格:
采用Intel Bay Trail J1900處理器

提供4*COM, 9...

SV1a-19014P

所屬類別:工控主板

產品規格:
采用Intel Bay Trail J1900處理器

提供4*COM, 9...

詳細內容
規格
General
CPU
Intel® Bay Trail J1900 CPU, Quad-core, up to2.42 GHz, TDP 10W
Chipset
Null
Memory
Up to 8 GB DDR3L 1333 MHz, 1*SO-DIMM
Storage
1*SATA 2.0, 1*mSATA
Expansion Interface
2*Mini-PCIe (1*mSATA Supported, 1*Wifi/3G/4G Supported)
BIOS
AMI UEFI BIOS
System
Windows 7/8/10, Linux, Android

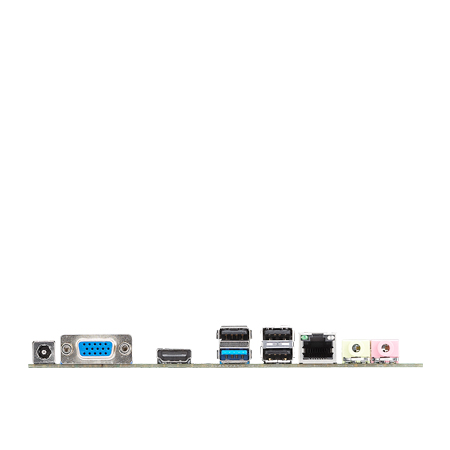

I/O Interface
Serial Port
4*RS232 (COM3 TTL optional)
USB
1*USB 3.0, 8*USB 2.0 (4*on rear I/O, 5*header)
Ethernet 1*Realtek® PCI-E LAN for 1000Mbps
Audio

Realtek® ALC662 5.1 channelHDA Codec, supports MIC/Line-out Ports

1*Amplifer
PS/2
1*PS/2 (Keyboard and Mouse Supported)
Parallel Port
1*LPT
GPIO
8 programmable GPIO
Feature Interface
Null
Display
Display Interface

1*VGA: max resolution up to 2560*1600

1*HDMI: max resolution up to 1920*1200

1*LVDS: Dual Channel24bit, max resolution up to 1920*1200
Multiple Display
Dual
Mechanical & Environment
Dimension
Mini-ITX, 170*170mm
Power Input
DC 12V
Temperature Operation: 0℃~60℃, Storage: -25℃~75℃
Relative Humidity
Operation: 10%~90%, Storage: 5%~95%, non-condensing
