SV1-H8116

所屬類別:工控主板

產品規格:
支持Intel 4代Core i3/i5/i7處理器(LGA1150)

...

SV1-H8116

所屬類別:工控主板

產品規格:
支持Intel 4代Core i3/i5/i7處理器(LGA1150)

...

詳細內容
規格
General
CPU
Intel® Pentium®/ Celeron®/ 4th Generation CoreTM i3/i5/i7 CPU, LGA1150
Chipset
Intel® H81 Chipset, TDP 4.1W
Memory
Up to 8 GB DDR3 1600/1333 MHz, 1*DIMM
Storage
2*SATA 3.0, 2*SATA 2.0
Expansion Interface
1*PCI-E 16X, 1*Mini-PCIe (Wifi Supported)
BIOS
AMI UEFI BIOS
System
Windows 7/8/10, Linux

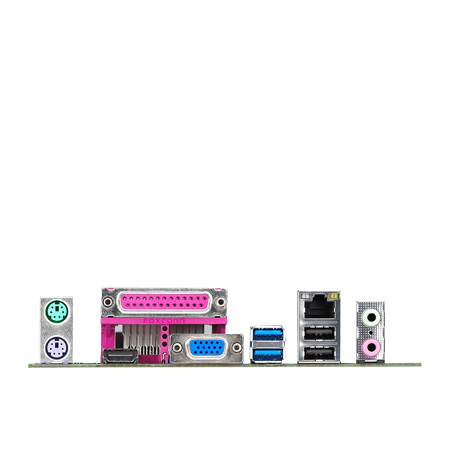

I/O Interface
Serial Port
6*RS232 (COM2 RS485 optional)
USB
2*USB 3.0, 8*USB 2.0 (4*on rear I/O, 6*header)
Ethernet 1*Realtek® PCI-E LAN for 100Mbps
Audio
Realtek® ALC662 5.1 channel HDA Codec, supports MIC/Line-outPorts
PS/2
1*PS/2 (Keyboard and Mouse Supported)
Parallel Port
1* LPT
GPIO
8 programmable GPIO
Feature Interface
Null
Display
Display Interface

1*VGA:max resolution up to 2048*1536

1*HDMI:max resolution up to 4096*2160
Multiple Display
Dual
Mechanical & Environment
Dimension
Mini-ITX, 170*170mm
Power Input
ATX PSU
Temperature Operation: 0℃~60℃, Storage: -25℃~75℃
Relative Humidity
Operation: 10%~90%, Storage: 5%~95%, non-condensing
